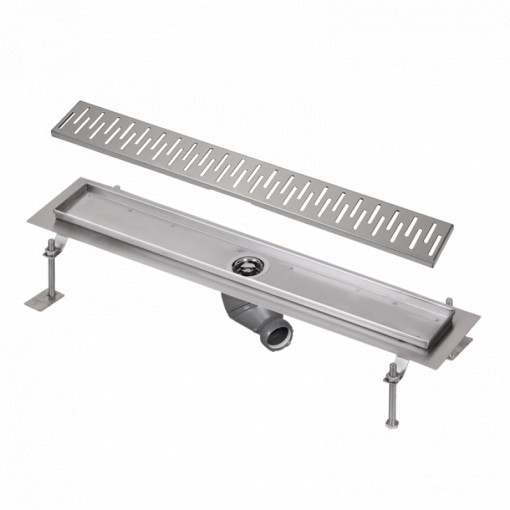

Bathroom floor drain assembled in the open space, 750 mm, polished

Descriere

CHANNEL

• material CrNi 18/10 (AISI -304), thickness 1,2 mm
• length 750, 850, 950, 1150 mm (different lengths could be made to order)
• ruff around the channel for connection to hydro-isolation
• mounting legs with M10 screws for better seating of the channel to the floor (horizontal position)
• low installation height
• side bends for better stability
• bond screw for connection with bonding conductor

WASTE OUTLET

• plastic siphon DN 43 mm (according to the norm DIN EN 274), rate of flow 42 l/min.
• easy to clean
• siphon in the middle of the drain, (different siphon positions could be made to order)

GRID

• six basic grid designs
• material CrNi 18/10 (AISI -304), thickness 1,2 mm
• other designed could be made to order
• brushed or polished finish
• grids for tiles insert (SLKN 09, 10, 11, 12)
